spring(2) web应用中spring IOC容器初始化(2)
|spring
字数总计: 2.3k|阅读时长: 11 分钟|阅读量:

前言

在上一篇博客spring(1) web应用中spring IOC容器初始化(1)中有说到XmlWebApplicationContext中的refresh方法才是真正用来做容器初始化的方法。那这次我们就来看一看spring IoC容器的初始化过程吧。

类图

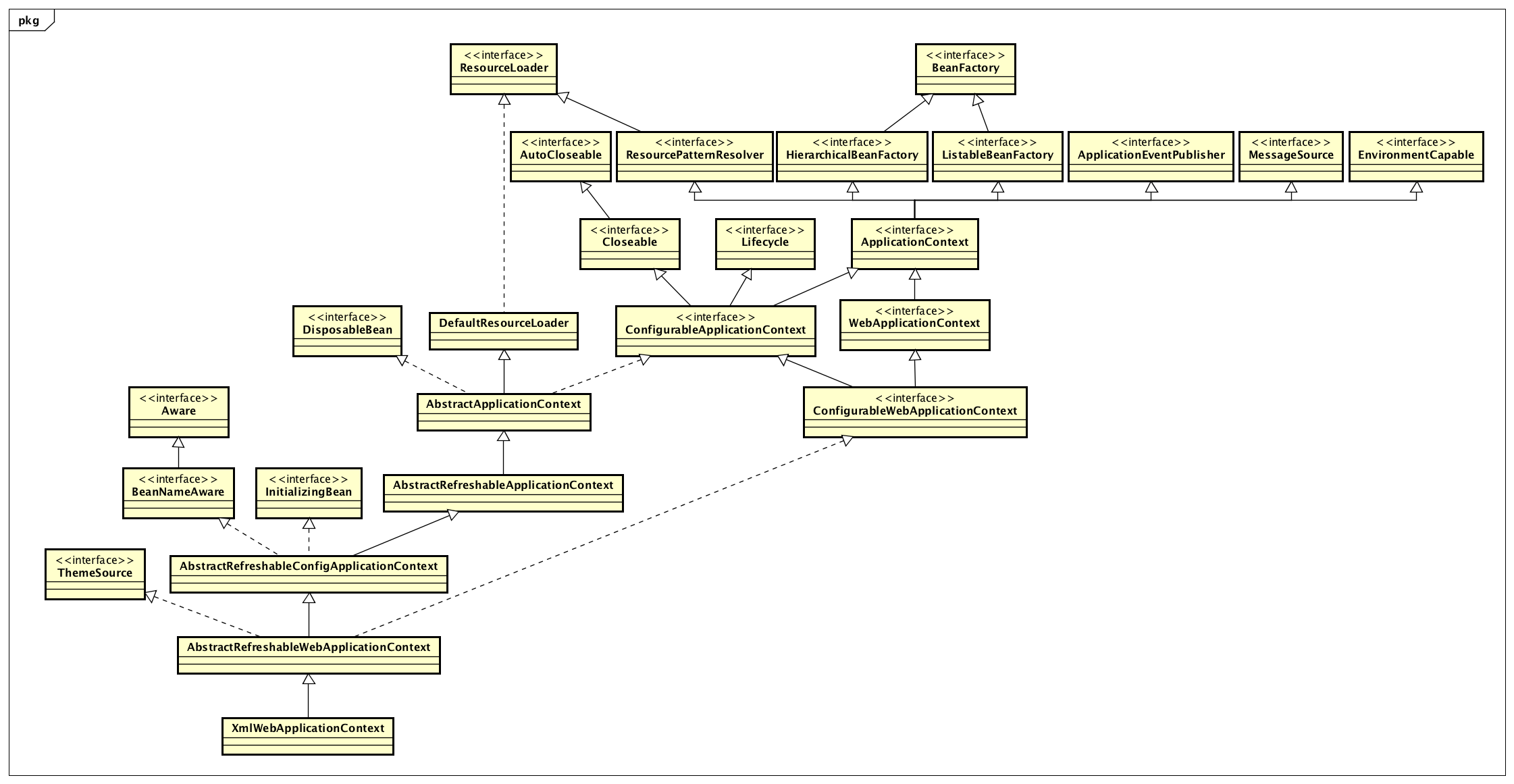

XMLWebApplicationContext的类图如下

refresh方法

这个方法是在XMLWebApplicationContext的父类AbstractApplicationContext中实现的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public void refresh() throws BeansException, IllegalStateException {
   synchronized (this.startupShutdownMonitor) {
      prepareRefresh(); // 初始化属性源
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
      prepareBeanFactory(beanFactory);

      try {
         postProcessBeanFactory(beanFactory);
         invokeBeanFactoryPostProcessors(beanFactory);
         registerBeanPostProcessors(beanFactory);
         initMessageSource();
         initApplicationEventMulticaster();
         onRefresh();
         registerListeners();
         finishBeanFactoryInitialization(beanFactory);
         finishRefresh();
      }

      catch (BeansException ex) {
         destroyBeans();
         cancelRefresh(ex);
         throw ex;
      }
   }
}

其中第二步的obtainFreshBeanFactory方法是我们需要关注的最重要的部分。spring的xml解析，bean解析注册等都是在这一步执行的。

bean解析流程

这里说的bean解析流程指的就是obtainFreshBeanFactory方法的执行流程：

  1. 销毁原有的bean工厂
  2. 创建新的bean工厂——DefaultListableBeanFactory
  3. 获取spring配置文件位置
  4. 根据位置获取文件资源
  5. 解析xml文件
  6. 判断beans的profile属性
  7. 创建bean解析委托器——BeanDefinitionParserDelegate
  8. 解析bean
    • 解析默认命名空间中标签，包括bean,import,beans,alias
    • 解析自定义的标签，例如context:component-scan标签

解析xml文件

这部分是由DefaultBeanDefinitionDocumentReader类的parseBeanDefinitions方法完成的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
protected void doRegisterBeanDefinitions(Element root) {
   String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
   if (StringUtils.hasText(profileSpec)) {
      Assert.state(this.environment != null, "Environment must be set for evaluating profiles");
      String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
            profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
      if (!this.environment.acceptsProfiles(specifiedProfiles)) {
         return;
      }
   }

   BeanDefinitionParserDelegate parent = this.delegate;
   this.delegate = createDelegate(this.readerContext, root, parent);

   preProcessXml(root);
   parseBeanDefinitions(root, this.delegate);
   postProcessXml(root);

   this.delegate = parent;
}

这一部分可以看到首先会判断profile是否是系统接受的profile(为空也接受)，之后会调用parseBeanDefinitions方法来进行解析操作。还有两个方法preProcessXml和postProcessXml均为空实现，是留给我们扩展的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
   if (delegate.isDefaultNamespace(root)) {
      NodeList nl = root.getChildNodes();
      for (int i = 0; i < nl.getLength(); i++) {
         Node node = nl.item(i);
         if (node instanceof Element) {
            Element ele = (Element) node;
            if (delegate.isDefaultNamespace(ele)) {
               parseDefaultElement(ele, delegate);
            }
            else {
               delegate.parseCustomElement(ele);
            }
         }
      }
   }
   else {
      delegate.parseCustomElement(root);
   }
}

我们可以看到这里的逻辑不算复杂：判断元素是使用默认命名空间处理还是自定义命名空间处理，递归处理其子元素。

那我们会存在如下一些疑问，默认命名空间是什么意思？打开isDefaultNamespace的代码。

1
2
3
4
5
6
7
8
9
public static final String BEANS_NAMESPACE_URI = "http://www.springframework.org/schema/beans";

public boolean isDefaultNamespace(Node node) {
   return isDefaultNamespace(getNamespaceURI(node));
}

public boolean isDefaultNamespace(String namespaceUri) {
   return (!StringUtils.hasLength(namespaceUri) || BEANS_NAMESPACE_URI.equals(namespaceUri));
}

即判断该元素的命名空间URI是否是http://www.springframework.org/schema/beans。

默认元素解析

接下来我们来看默认命名空间是如何进行解析的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
   if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
      importBeanDefinitionResource(ele);
   }
   else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
      processAliasRegistration(ele);
   }
   else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
      processBeanDefinition(ele, delegate);
   }
   else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
      // recurse
      doRegisterBeanDefinitions(ele);
   }
}

我们可以发现默认命名空间中的标签其实就只有4个: import,alias,bean和beans。

该解析流程就是分别调用了四种不同标签的解析方法。

我们接下来来看这四种解析方式。

import标签解析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
protected void importBeanDefinitionResource(Element ele) {
   String location = ele.getAttribute(RESOURCE_ATTRIBUTE);
   if (!StringUtils.hasText(location)) {
      getReaderContext().error("Resource location must not be empty", ele);
      return;
   }

   // 解析系统属性，例如"${user.dir}"
   location = environment.resolveRequiredPlaceholders(location);

   Set<Resource> actualResources = new LinkedHashSet<Resource>(4);

   // 判断该路径是绝对路径还是相对路径
   boolean absoluteLocation = false;
   try {
      absoluteLocation = ResourcePatternUtils.isUrl(location) || ResourceUtils.toURI(location).isAbsolute();
   }
   catch (URISyntaxException ex) {
      // cannot convert to an URI, considering the location relative
      // unless it is the well-known Spring prefix "classpath*:"
   }

   if (absoluteLocation) {
      try {
         int importCount = getReaderContext().getReader().loadBeanDefinitions(location, actualResources);
         if (logger.isDebugEnabled()) {
            logger.debug("Imported " + importCount + " bean definitions from URL location [" + location + "]");
         }
      }
      catch (BeanDefinitionStoreException ex) {
         getReaderContext().error(
               "Failed to import bean definitions from URL location [" + location + "]", ele, ex);
      }
   }
   else {
      try {
         int importCount;
         Resource relativeResource = getReaderContext().getResource().createRelative(location);
         if (relativeResource.exists()) {
            importCount = getReaderContext().getReader().loadBeanDefinitions(relativeResource);
            actualResources.add(relativeResource);
         }
         else {
            String baseLocation = getReaderContext().getResource().getURL().toString();
            importCount = getReaderContext().getReader().loadBeanDefinitions(
                  StringUtils.applyRelativePath(baseLocation, location), actualResources);
         }
         if (logger.isDebugEnabled()) {
            logger.debug("Imported " + importCount + " bean definitions from relative location [" + location + "]");
         }
      }
      catch (IOException ex) {
         getReaderContext().error("Failed to resolve current resource location", ele, ex);
      }
      catch (BeanDefinitionStoreException ex) {
         getReaderContext().error("Failed to import bean definitions from relative location [" + location + "]",
               ele, ex);
      }
   }
   Resource[] actResArray = actualResources.toArray(new Resource[actualResources.size()]);
   getReaderContext().fireImportProcessed(location, actResArray, extractSource(ele));
}

如果我们继续跟着loadBeanDefinitions方法走进去，可以发现其又回到了前文所讲的bean解析流程的第五步——解析xml文件。

alias标签解析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
protected void processAliasRegistration(Element ele) {
   String name = ele.getAttribute(NAME_ATTRIBUTE);
   String alias = ele.getAttribute(ALIAS_ATTRIBUTE);
   boolean valid = true;
   if (!StringUtils.hasText(name)) {
      getReaderContext().error("Name must not be empty", ele);
      valid = false;
   }
   if (!StringUtils.hasText(alias)) {
      getReaderContext().error("Alias must not be empty", ele);
      valid = false;
   }
   if (valid) {
      try {
         getReaderContext().getRegistry().registerAlias(name, alias);
      }
      catch (Exception ex) {
         getReaderContext().error("Failed to register alias '" + alias +
               "' for bean with name '" + name + "'", ele, ex);
      }
      getReaderContext().fireAliasRegistered(name, alias, extractSource(ele));
   }
}

可以看到这个方法所做的事情就是将标签中的name和alias属性进行别名注册。

bean标签解析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
   BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
   if (bdHolder != null) {
      bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
      try {
         // Register the final decorated instance.
         BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
      }
      catch (BeanDefinitionStoreException ex) {
         getReaderContext().error("Failed to register bean definition with name '" +
               bdHolder.getBeanName() + "'", ele, ex);
      }
      // Send registration event.
      getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
   }
}

这里主要是调用了BeanDefinitionParserDelegate的parseBeanDefinitionElement进行了解析，这一部分我们另开章节。

spring(3) web应用中spring IOC容器初始化(3) bean解析

beans标签解析

可以发现，解析这个标签调用了doRegisterBeanDefinitions这个方法，这个方法就是解析xml文件的初始方法。由此形成了一个递归。

于是我们产生了这样一个疑问，什么场景下beans中才有必要嵌套beans标签来使用？

我大概想到的一种情况就是利用beans标签的profile属性。(这种场景也通过查阅资料验证存在)

自定义元素解析

这部分留到后面的章节。

关于注解方式的解析spring(4) web应用中spring IOC容器初始化(4) 注解方式初始化

bean解析完后续流程

prepareBeanFactory方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
   // Tell the internal bean factory to use the context's class loader etc.
   beanFactory.setBeanClassLoader(getClassLoader());
   beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver());
   beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

   // Configure the bean factory with context callbacks.
   beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
   beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
   beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
   beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
   beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
   beanFactory.ignoreDependencyInterface(EnvironmentAware.class);

   // BeanFactory interface not registered as resolvable type in a plain factory.
   // MessageSource registered (and found for autowiring) as a bean.
   beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
   beanFactory.registerResolvableDependency(ResourceLoader.class, this);
   beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
   beanFactory.registerResolvableDependency(ApplicationContext.class, this);

   // Detect a LoadTimeWeaver and prepare for weaving, if found.
   if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
      // Set a temporary ClassLoader for type matching.
      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
   }

   // Register default environment beans.
   if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
      beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
   }
   if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
      beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
   }
   if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
      beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
   }
}

这个方法其实就是对bean工厂进行了标准上下文特性的配置。

postProcessBeanFactory方法

这个方法是用来在bean加载完还未实例化之前对内置的bean工厂进行修改的。

在web的环境下，这个方法的实现如下，

1
2
3
4
5
6
7
8
protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
   beanFactory.addBeanPostProcessor(new ServletContextAwareProcessor(this.servletContext, this.servletConfig));
   beanFactory.ignoreDependencyInterface(ServletContextAware.class);
   beanFactory.ignoreDependencyInterface(ServletConfigAware.class);

   WebApplicationContextUtils.registerWebApplicationScopes(beanFactory, this.servletContext);
   WebApplicationContextUtils.registerEnvironmentBeans(beanFactory, this.servletContext, this.servletConfig);
}

web环境中注册了request和session两个scope等一些操作。

invokeBeanFactoryPostProcessors方法

1
2
3
4
5
6
7
8
/**
 * Instantiate and invoke all registered BeanFactoryPostProcessor beans,
 * respecting explicit order if given.
 * <p>Must be called before singleton instantiation.
 */
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
   PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
}

根据注释可知这个方法是用来实例化及调用所有注册过的BeanFactoryPostProcessor beans。

registerBeanPostProcessors方法

1
2
3
4
5
6
7
8
/**
 * Instantiate and invoke all registered BeanPostProcessor beans,
 * respecting explicit order if given.
 * <p>Must be called before any instantiation of application beans.
 */
protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
   PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}

根据注释可知这个方法是用来实例化及调用所有注册过的BeanPostProcessor beans。

initMessageSource方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
/**
 * Initialize the MessageSource.
 * Use parent's if none defined in this context.
 */
protected void initMessageSource() {
   ConfigurableListableBeanFactory beanFactory = getBeanFactory();
   if (beanFactory.containsLocalBean(MESSAGE_SOURCE_BEAN_NAME)) {
      this.messageSource = beanFactory.getBean(MESSAGE_SOURCE_BEAN_NAME, MessageSource.class);
      // Make MessageSource aware of parent MessageSource.
      if (this.parent != null && this.messageSource instanceof HierarchicalMessageSource) {
         HierarchicalMessageSource hms = (HierarchicalMessageSource) this.messageSource;
         if (hms.getParentMessageSource() == null) {
            // Only set parent context as parent MessageSource if no parent MessageSource
            // registered already.
            hms.setParentMessageSource(getInternalParentMessageSource());
         }
      }
      if (logger.isDebugEnabled()) {
         logger.debug("Using MessageSource [" + this.messageSource + "]");
      }
   }
   else {
      // Use empty MessageSource to be able to accept getMessage calls.
      DelegatingMessageSource dms = new DelegatingMessageSource();
      dms.setParentMessageSource(getInternalParentMessageSource());
      this.messageSource = dms;
      beanFactory.registerSingleton(MESSAGE_SOURCE_BEAN_NAME, this.messageSource);
      if (logger.isDebugEnabled()) {
         logger.debug("Unable to locate MessageSource with name '" + MESSAGE_SOURCE_BEAN_NAME +
               "': using default [" + this.messageSource + "]");
      }
   }
}

该方法是用来初始化MessageSource的。

initApplicationEventMulticaster方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/**
 * Initialize the ApplicationEventMulticaster.
 * Uses SimpleApplicationEventMulticaster if none defined in the context.
 * @see org.springframework.context.event.SimpleApplicationEventMulticaster
 */
protected void initApplicationEventMulticaster() {
   ConfigurableListableBeanFactory beanFactory = getBeanFactory();
   if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
      this.applicationEventMulticaster =
            beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);
      if (logger.isDebugEnabled()) {
         logger.debug("Using ApplicationEventMulticaster [" + this.applicationEventMulticaster + "]");
      }
   }
   else {
      this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
      beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
      if (logger.isDebugEnabled()) {
         logger.debug("Unable to locate ApplicationEventMulticaster with name '" +
               APPLICATION_EVENT_MULTICASTER_BEAN_NAME +
               "': using default [" + this.applicationEventMulticaster + "]");
      }
   }
}

这个方法是用来初始化事件广播的。可以看到我们可以通过定义一个beanName为”applicationEventMulticaster”的bean来自定义自己的广播。

onRefresh方法

1
2
3
4
5
6
7
/**
 * Initialize the theme capability.
 */
@Override
protected void onRefresh() {
   this.themeSource = UiApplicationContextUtils.initThemeSource(this);
}

这个方法在web中的实现是用来初始化theme capability的。

registerListeners方法

1
2
3
4
5
6
7
8
9
10
11
12
protected void registerListeners() {
   // Register statically specified listeners first.
   for (ApplicationListener<?> listener : getApplicationListeners()) {
      getApplicationEventMulticaster().addApplicationListener(listener);
   }
   // Do not initialize FactoryBeans here: We need to leave all regular beans
   // uninitialized to let post-processors apply to them!
   String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
   for (String lisName : listenerBeanNames) {
      getApplicationEventMulticaster().addApplicationListenerBean(lisName);
   }
}

该方法是用来向事件广播中注册监听器(即实现了ApplicationListener接口的beans)。

finishBeanFactoryInitialization方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
   // Initialize conversion service for this context.
   if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
         beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
      beanFactory.setConversionService(
            beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
   }

   // Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
   String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
   for (String weaverAwareName : weaverAwareNames) {
      getBean(weaverAwareName);
   }

   // Stop using the temporary ClassLoader for type matching.
   beanFactory.setTempClassLoader(null);

   // Allow for caching all bean definition metadata, not expecting further changes.
   beanFactory.freezeConfiguration();

   // Instantiate all remaining (non-lazy-init) singletons.
   beanFactory.preInstantiateSingletons();
}

这个方法主要是初始化所有剩余的非懒加载的单例bean。

finishRefresh方法

1
2
3
4
5
6
7
8
9
10
11
12
13
protected void finishRefresh() {
   // Initialize lifecycle processor for this context.
   initLifecycleProcessor();

   // Propagate refresh to lifecycle processor first.
   getLifecycleProcessor().onRefresh();

   // Publish the final event.
   publishEvent(new ContextRefreshedEvent(this));

   // Participate in LiveBeansView MBean, if active.
   LiveBeansView.registerApplicationContext(this);
}

该方法主要是调用生命周期处理器以及publish ContextRefreshedEvent。

文章作者: 刘鱼鱼YoY
文章链接: https://www.lyytaw.com/spring/spring_web_ioc_init_2/
版权声明: 本博客所有文章除特别声明外，均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 刘鱼鱼YoY|BLOG！
Java spring
